OpenVox MAG1100 Series Analog VoIP Gateway

OpenVox MAG1100 Series Analog VoIP Gateway

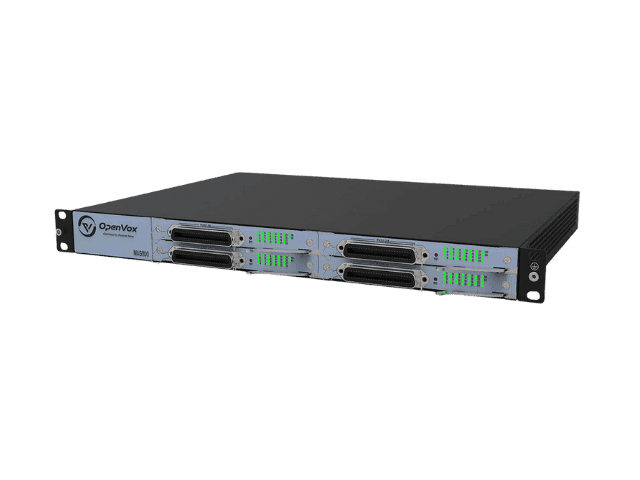

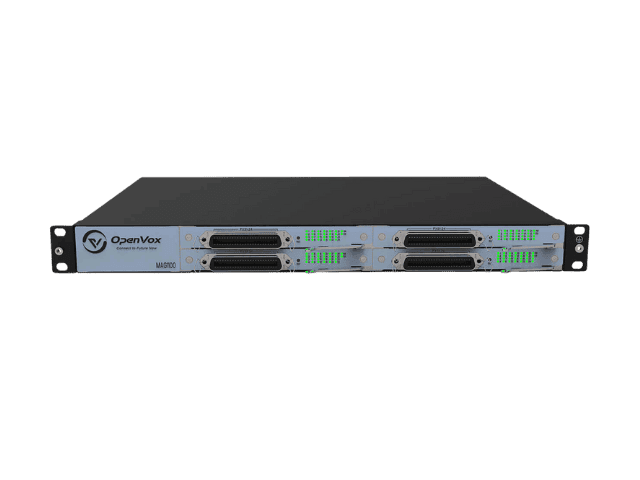

The OpenVox MAG1100 Analog VoIP Gateway is a powerful and scalable solution for seamless connectivity between IPPBX, fax machines, analog phones, and telecom operators. With a modular design, it supports 48/72/96 FXS interfaces, allowing for flexible expansion based on your needs.

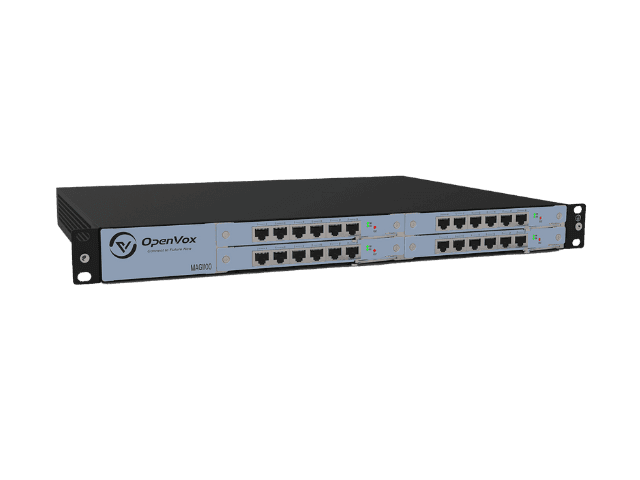

Equipped with RJ21/RJ45 modules, dual 100Mbps Ethernet ports, an SFP port, and a Console port, the MAG1100 ensures high-performance voice and fax processing with exceptional stability. Designed for service providers, enterprises, call centers, and residential communities, it delivers crystal-clear communication and reliability.


Compatible with OpenVox’s OIAD gateway system, the MAG1100 supports a range of codecs (G.711A, G.711U, G.729A, G.722, G.726, and more) and operates on standard SIP protocols. It seamlessly integrates with leading VoIP platforms like Asterisk, Issabel, 3CX, FreeSWITCH, BroadSoft, and VOS, making it the ideal choice for businesses seeking scalability, efficiency, and superior voice quality.

The OpenVox MAG1100 Analog VoIP Gateway is a powerful and scalable solution for seamless connectivity between IPPBX, fax machines, analog phones, and telecom operators. With a modular design, it supports 48/72/96 FXS interfaces, allowing for flexible expansion based on your needs.


Equipped with RJ21/RJ45 modules, dual 100Mbps Ethernet ports, an SFP port, and a Console port, the MAG1100 ensures high-performance voice and fax processing with exceptional stability. Designed for service providers, enterprises, call centers, and residential communities, it delivers crystal-clear communication and reliability.


Compatible with OpenVox’s OIAD gateway system, the MAG1100 supports a range of codecs (G.711A, G.711U, G.729A, G.722, G.726, and more) and operates on standard SIP protocols. It seamlessly integrates with leading VoIP platforms like Asterisk, Issabel, 3CX, FreeSWITCH, BroadSoft, and VOS, making it the ideal choice for businesses seeking scalability, efficiency, and superior voice quality.

Supports up to 96 FXS/FXO ports

versatile gateway seamlessly

Use standard SIP protocol

Compatible with leading IMS/NGN platform, IPPBX and SIP servers

Up to 96 analog ports FXO or FXS

Up to 96 analog ports

MAG1100

48 / 79 / 96 FXS FXO

2 * 10/100MBPS eth ports

MAG1000 series Analog Gateway

Interface

Support 48/72/96 ports

Interface Type

Support RJ21/RJ45

Console

1*RS232(RJ45)

Network Interface

1*SFP

Dimension

440*44.5*335mm

Weight

4.5kg

Max Power Consumption

120W

Power Supply

100-240VAC

Operation Temperature

0°C ~ 45°C

Operation Humidity Range

10% ~ 90% NON-CONDENSING

Storage Temperature Range

-20°C ~ 70°C

Certification

CE

Features

Physical Interfaces (Capacity & Ethernet Interfaces)

Physical Interfaces (Capacity & Ethernet Interfaces)

16/24/32 FXS with RJ11 & RJ21

16/24/32 FXS with RJ11 & RJ21

16/24/32 FXO with RJ11 & RJ21

16/24/32 FXO with RJ11 & RJ21

1*WAN, 10/100Mbps, RJ-45

1*WAN, 10/100Mbps, RJ-45

1*LAN, 10/100Mbps, RJ-45

1*LAN, 10/100Mbps, RJ-45

Software Features

Software Features

Hunting Group

Hunting Group

Web and Telnet ACL

Web and Telnet ACL

Action URL

Action URL

PPPoE

PPPoE

OpenVPN

OpenVPN

Digitmap

Digitmap

Routing Rules based Prefixes

Routing Rules based Prefixes

Caller/Called Number Manipulation

Caller/Called Number Manipulation

VEX (Advanced Peer To Peer Call)

VEX (Advanced Peer To Peer Call)

Voice & Fax

Voice & Fax

G.711A/U, G.729A, G.722, G.726, OPUS, AMR, AMR-WB

G.711A/U, G.729A, G.722, G.726, OPUS, AMR, AMR-WB

Comfort Noise Generation (CNG)

Comfort Noise Generation (CNG)

Modem/POS

Modem/POS

Adaptive (Dynamic) Jitter Buffer

Adaptive (Dynamic) Jitter Buffer

Programmable Gain Control

Programmable Gain Control

DTMF mode: Signal/RFC2833/INBAND

DTMF mode: Signal/RFC2833/INBAND

T.38/Pass-through

T.38/Pass-through

Echo Cancellation (G.168), with up to 128ms

Echo Cancellation (G.168), with up to 128ms

VoIP (Protocol)

VoIP (Protocol)

SIP v2.0 (UDP/TCP), RFC3261

SIP v2.0 (UDP/TCP), RFC3261

SDP, RTP(RFC2833), RFC3262, RFC3263, RFC3264, RFC3265, RFC3515, RFC2976, RFC3311

SDP, RTP(RFC2833), RFC3262, RFC3263, RFC3264, RFC3265, RFC3515, RFC2976, RFC3311

RTP/RTCP, RFC2198, RFC1889

RTP/RTCP, RFC2198, RFC1889

IPv4 and lPv6

IPv4 and lPv6

Outbound Proxy

Outbound Proxy

RFC2806 TEL URI

RFC2806 TEL URI

RFC3581 NAT, rport

RFC3581 NAT, rport

VLAN 802.1P/802.1Q

VLAN 802.1P/802.1Q

RFC4028 Session Timer

RFC4028 Session Timer

DNS SRV/A Query/NATPR Query

DNS SRV/A Query/NATPR Query

NAT: STUN, Static/Dynamic NAT

NAT: STUN, Static/Dynamic NAT

FXS

FXS

Connector: RJ11

Connector: RJ11

Dial Mode: DTMF and Pulse

Dial Mode: DTMF and Pulse

Pulse: 10 and 20 PPS

Pulse: 10 and 20 PPS

Caller ID: DTMF/FSK CLI Presentation

Caller ID: DTMF/FSK CLI Presentation

Max Cable Length:3 km

Max Cable Length:3 km

Reversed Polarity

Reversed Polarity

Programmable Call Progress Tone

Programmable Call Progress Tone

FXO

FXO

Connector: RJ11

Connector: RJ11

Dial Mode: DTMF and Pulse

Dial Mode: DTMF and Pulse

Caller ID: FSK, DTMF

Caller ID: FSK, DTMF

Polarity Reversal

Polarity Reversal

Answer Delay

Answer Delay

Busy Tone Detection

Busy Tone Detection

No Current Detection

No Current Detection

Maintenance

Maintenance

SNMP v1/v2/v3

SNMP v1/v2/v3

Auto Provisioning

Auto Provisioning

Web Configuration

Web Configuration

Backup/Restore

Backup/Restore

Firmware Upgrade via Web

Firmware Upgrade via Web

CDR

CDR

IPOE

IPOE

Syslog(Emerg, alert, critical, error, warning, notice, info, debug)

Syslog(Emerg, alert, critical, error, warning, notice, info, debug)

Ping/Tracert Test/Network Capture

Ping/Tracert Test/Network Capture

NTP/Daylight Saving Time

NTP/Daylight Saving Time

lVR local Maintenance

lVR local Maintenance

Cloud-based Management

Cloud-based Management
