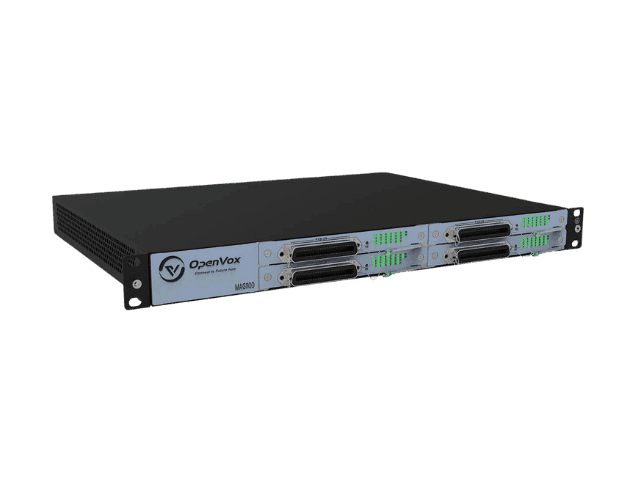

OpenVox MAG1000 Series Analog VoIP Gateway
OpenVox MAG1000 Series Analog VoIP Gateway
The OpenVox MAG1000 Series Analog VoIP Gateway is a high-performance, space-saving solution designed for cost-efficient communication. Supporting 16/24/32 FXO/FXS ports, this versatile gateway seamlessly integrates with your VoIP system while delivering exceptional reliability.
Built for global compatibility, the MAG1000 supports a wide range of codecs, including G.711A, G.711U, G.729, G.722, G.726, OPUS, AMR, and AMR-WB. It runs on standard SIP protocols, ensuring smooth interoperability with leading IMS/NGN platforms, IP PBX systems, and SIP servers.
CE-certified and engineered for efficiency, the MAG1000 Series is the ideal choice for businesses looking to optimize their VoIP infrastructure.
The OpenVox MAG1000 Series Analog VoIP Gateway is a high-performance, space-saving solution designed for cost-efficient communication. Supporting 16/24/32 FXO/FXS ports, this versatile gateway seamlessly integrates with your VoIP system while delivering exceptional reliability.
Built for global compatibility, the MAG1000 supports a wide range of codecs, including G.711A, G.711U, G.729, G.722, G.726, OPUS, AMR, and AMR-WB. It runs on standard SIP protocols, ensuring smooth interoperability with leading IMS/NGN platforms, IP PBX systems, and SIP servers.
CE-certified and engineered for efficiency, the MAG1000 Series is the ideal choice for businesses looking to optimize their VoIP infrastructure.
Supports up to 32 FXS/FXO ports
versatile gateway seamlessly
Use standard SIP protocol
Compatible with leading IMS/NGN platform, IPPBX and SIP servers
Up to 32 analog ports FXO or FXS
Up to 32 analog ports
Model Comparison
Model Comparison
FXS
FXO
MAG1000-16S
16
/
MAG1000-16O
/
16
MAG1000-24S
24
/
MAG1000-24O
/
24
MAG1000-32S
32
/
MAG1000-32O
/
32
Common Specs
Ethernet Ports
2 * 10/100Mbps Ports
Dimension
440*45*220mm
Power Supply
90-264VAC
Operation
Temperature
0°C ~ 50°C
Operation
Humidity Range
10% ~ 90% NON-CONDENSING
Storage
Temperature Range
-20°C ~ 70°C
Short/Long
Haul Ring Load
2 REN, up to 3km on 24AWG line
Certification
CE
MAG1000-16S
MAG1000-16O
MAG1000-24S
MAG1000-24O
MAG1000-32S
MAG1000-32O
Ports
16 FXS
16 FXO
24 FXS
24 FXO
32 FXS
32 FXO
Port Type
RJ11/RJ45(Standard) RJ21(Optional)
Ethernet
2 * 10/100Mbps Ports
Console
RJ45
Dimension
440*45*220mm bare / 510*90*310mm with packaging
Weight (kg)
2.86
2.98
3.1
Power Consumption
20w
28w
36w
Power Supply
90-264VAC
Operation Temperature
0°C ~ 45°C
Storage Temperature Range
-20°C ~ 70°C
Short/Long Haul Ring Load
2 REN, up to 3km on 24AWG line
Certification
CE
Features
Physical Interfaces (Capacity & Ethernet Interfaces)
Physical Interfaces (Capacity & Ethernet Interfaces)
16/24/32 FXS with RJ11 & RJ21
16/24/32 FXS with RJ11 & RJ21
16/24/32 FXO with RJ11 & RJ21
16/24/32 FXO with RJ11 & RJ21
1*WAN, 10/100Mbps, RJ-45
1*WAN, 10/100Mbps, RJ-45
1*LAN, 10/100Mbps, RJ-45
1*LAN, 10/100Mbps, RJ-45
Software Features
Software Features
Hunting Group
Hunting Group
Web ACL
Web ACL
Telnet ACL
Telnet ACL
Action URL
Action URL
PPPoE
PPPoE
OpenVPN
OpenVPN
Digitmap
Digitmap
Routing Rules based Prefixes
Routing Rules based Prefixes
Caller/Called Number Manipulation
Caller/Called Number Manipulation
Voice & Fax
Voice & Fax
G.711A/U, G.729A, G.722, G.726, OPUS, AMR, AMR-WB
G.711A/U, G.729A, G.722, G.726, OPUS, AMR, AMR-WB
Comfort Noise Generation (CNG)
Comfort Noise Generation (CNG)
Modem/POS
Modem/POS
Adaptive (Dynamic) Jitter Buffer
Adaptive (Dynamic) Jitter Buffer
Programmable Gain Control
Programmable Gain Control
DTMF mode: Signal/RFC2833/INBAND
DTMF mode: Signal/RFC2833/INBAND
T.38/Pass-through
T.38/Pass-through
Echo Cancellation (G.168), with up to 128ms
Echo Cancellation (G.168), with up to 128ms
Voicemail
Voicemail
VoIP (Protocol)
VoIP (Protocol)
SIP v2.0 (UDP/TCP), RFC3261
SIP v2.0 (UDP/TCP), RFC3261
SDP, RTP(RFC2833), RFC3262, RFC3263, RFC3264, RFC3265, RFC3515, RFC2976, RFC3311
SDP, RTP(RFC2833), RFC3262, RFC3263, RFC3264, RFC3265, RFC3515, RFC2976, RFC3311
RTP/RTCP, RFC2198, RFC1889
RTP/RTCP, RFC2198, RFC1889
IPv4 and lPv6
IPv4 and lPv6
Outbound Proxy
Outbound Proxy
RFC2806 TEL URI
RFC2806 TEL URI
RFC3581 NAT, rport
RFC3581 NAT, rport
VLAN 802.1P/802.1Q
VLAN 802.1P/802.1Q
RFC4028 Session Timer
RFC4028 Session Timer
DNS SRV/A Query/NATPR Query
DNS SRV/A Query/NATPR Query
NAT: STUN, Static/Dynamic NAT
NAT: STUN, Static/Dynamic NAT
FXS
FXS
Connector: RJ11
Connector: RJ11
Dial Mode: DTMF and Pulse
Dial Mode: DTMF and Pulse
Pulse: 10 and 20 PPS
Pulse: 10 and 20 PPS
Caller ID: DTMF/FSK CLI Presentation
Caller ID: DTMF/FSK CLI Presentation
Max Cable Length:3 km
Max Cable Length:3 km
Reversed Polarity
Reversed Polarity
Programmable Call Progress Tone
Programmable Call Progress Tone
FXO
FXO
Connector: RJ11
Connector: RJ11
Dial Mode: DTMF and Pulse
Dial Mode: DTMF and Pulse
Caller ID: FSK, DTMF
Caller ID: FSK, DTMF
Polarity Reversal
Polarity Reversal
Answer Delay
Answer Delay
Busy Tone Detection
Busy Tone Detection
No Current Detection
No Current Detection
Maintenance
Maintenance
SNMP v1/v2/v3
SNMP v1/v2/v3
Auto Provisioning
Auto Provisioning
Web Configuration
Web Configuration
Backup/Restore
Backup/Restore
Firmware Upgrade via Web
Firmware Upgrade via Web
CDR
CDR
IPOE
IPOE
Syslog(Emerg, alert, critical, error, warning, notice, info, debug)
Syslog(Emerg, alert, critical, error, warning, notice, info, debug)
Ping/Tracert Test/Network Capture
Ping/Tracert Test/Network Capture
NTP/Daylight Saving Time
NTP/Daylight Saving Time
lVR local Maintenance
lVR local Maintenance
Cloud-based Management
Cloud-based Management
