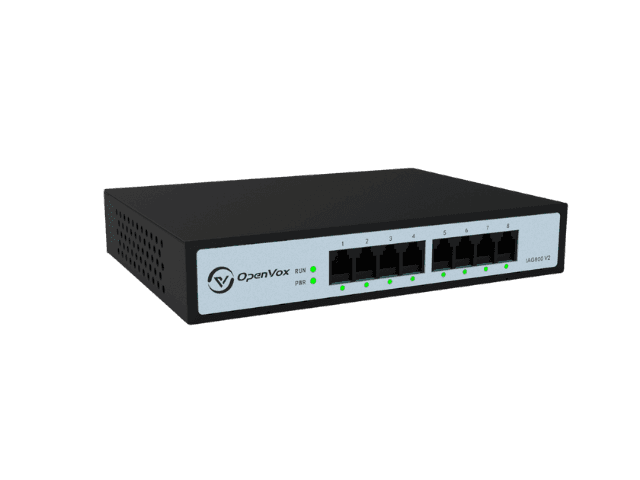

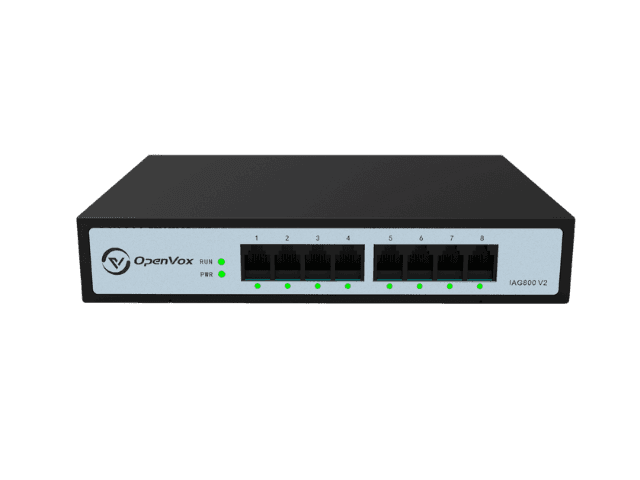

OpenVox iAG800 V2 Series Analog VoIP Gateway

OpenVox iAG800 V2 Series Analog VoIP Gateway

Experience seamless communication with the OpenVox iAG800 Series Analog VoIP Gateway, designed for SMBs and SOHOs seeking efficiency and cost savings. With 2/4/8 FXO/FXS port combinations, a compact design, and high-performance capabilities, this gateway optimizes space while delivering exceptional connectivity.


Fully configurable for global compatibility, it supports a wide range of voice codecs, including G.711A, G.711U, G.729, G.722, G.726, OPUS, AMR, and AMR-WB. Built on standard SIP protocols, the iAG800 ensures seamless integration with leading IMS/NGN platforms, IP PBX systems, and SIP servers.


Boost your business communication with reliable, high-quality voice solutions tailored for modern networking needs.

Experience seamless communication with the OpenVox iAG800 Series Analog VoIP Gateway, designed for SMBs and SOHOs seeking efficiency and cost savings. With 2/4/8 FXO/FXS port combinations, a compact design, and high-performance capabilities, this gateway optimizes space while delivering exceptional connectivity.


Fully configurable for global compatibility, it supports a wide range of voice codecs, including G.711A, G.711U, G.729, G.722, G.726, OPUS, AMR, and AMR-WB. Built on standard SIP protocols, the iAG800 ensures seamless integration with leading IMS/NGN platforms, IP PBX systems, and SIP servers.


Boost your business communication with reliable, high-quality voice solutions tailored for modern networking needs.

Up to 8 analog ports FXO or FXS

Up to 8 analog ports

iAG800 v2

2 / 4 / 8 FXS FXO

2 * 10/100MBPS eth ports

Model Comparison

Model Comparison

FXS

FXO

iAG800 V2-2S2O

2

2

iAG800 V2-4S4O

4

4

iAG800 V2-4S

4

/

iAG800 V2-8S

8

/

iAG800 V2-4O

/

4

iAG800 V2-8O

/

8

Common Specs

Ethernet Ports

2 * 10/100Mbps Ports

Weight

637g

Dimension

19cm*14.2cm*3.5cm

Power Supply

12V DC/2A

Maximum Power Consumption

12W

Operation Temperature

0°C ~ 50°C

Operation Humidity Range

10% ~ 90% NON-CONDENSING

Storage Temperature Range

-20°C ~ 70°C

Short/Long Haul Ring Load

2 REN, up to 3km on 24AWG line

Certification

CE, FCC

VS-2S2O

VS-4S4O

VS-4S

VS-8S

VS-4O

VS-8O

Ports

2 FXS | 2 FXO

4 FXS | 4 FXO

4 FXS

8 FXS

4 FXO

8 FXO

Ethernet

2 * 10/100Mbps Ports

Weight

637g

Dimension

19cm*14.2cm*3.5cm

Power Supply

12V DC/2A

Max Power Consumption

12W

Operation Temperature

0°C ~ 50°C

Operation Humidity Range

10% ~ 90% NON-CONDENSING

Storage Temperature Range

-20°C ~ 70°C

Short/Long Haul Ring Load

2 REN, up to 3km on 24AWG line

Software & Platform

Linux OS

Certification

CE, FCC

Features

Physical Interfaces (Capacity & Ethernet Interfaces)

Physical Interfaces (Capacity & Ethernet Interfaces)

2/4/8 FXS with RJ11

2/4/8 FXS with RJ11

2/4/8 FXO with RJ11

2/4/8 FXO with RJ11

1*WAN, 10/100Mbps, RJ-45

1*WAN, 10/100Mbps, RJ-45

1*LAN, 10/100Mbps, RJ-45

1*LAN, 10/100Mbps, RJ-45

Software Features

Software Features

Hunting Group

Hunting Group

Web ACL

Web ACL

Telnet ACL

Telnet ACL

Action URL

Action URL

PPPoE

PPPoE

OpenVPN

OpenVPN

Digitmap

Digitmap

Routing Rules based Prefixes

Routing Rules based Prefixes

Caller/Called Number Manipulation

Caller/Called Number Manipulation

Voice & Fax

Voice & Fax

G.711A/U, G.729A, G.722, G.726, OPUS, AMR, AMR-WB

G.711A/U, G.729A, G.722, G.726, OPUS, AMR, AMR-WB

Comfort Noise Generation (CNG)

Comfort Noise Generation (CNG)

Modem/POS

Modem/POS

Adaptive (Dynamic) Jitter Buffer

Adaptive (Dynamic) Jitter Buffer

Programmable Gain Control

Programmable Gain Control

DTMF mode: Signal/RFC2833/INBAND

DTMF mode: Signal/RFC2833/INBAND

T.38/Pass-through

T.38/Pass-through

Echo Cancellation (G.168), with up to 128ms

Echo Cancellation (G.168), with up to 128ms

Voicemail

Voicemail

VoIP (Protocol)

VoIP (Protocol)

SIP v2.0 (UDP/TCP), RFC3261

SIP v2.0 (UDP/TCP), RFC3261

SDP, RTP(RFC2833), RFC3262, RFC3263, RFC3264, RFC3265, RFC3515, RFC2976, RFC3311

SDP, RTP(RFC2833), RFC3262, RFC3263, RFC3264, RFC3265, RFC3515, RFC2976, RFC3311

RTP/RTCP, RFC2198, RFC1889

RTP/RTCP, RFC2198, RFC1889

IPv4 and lPv6

IPv4 and lPv6

Outbound Proxy

Outbound Proxy

RFC2806 TEL URI

RFC2806 TEL URI

RFC3581 NAT, rport

RFC3581 NAT, rport

VLAN 802.1P/802.1Q

VLAN 802.1P/802.1Q

RFC4028 Session Timer

RFC4028 Session Timer

DNS SRV/A Query/NATPR Query

DNS SRV/A Query/NATPR Query

NAT: STUN, Static/Dynamic NAT

NAT: STUN, Static/Dynamic NAT

FXS

FXS

Connector: RJ11

Connector: RJ11

Dial Mode: DTMF and Pulse

Dial Mode: DTMF and Pulse

Pulse: 10 and 20 PPS

Pulse: 10 and 20 PPS

Caller ID: DTMF/FSK CLI Presentation

Caller ID: DTMF/FSK CLI Presentation

Max Cable Length:3 km

Max Cable Length:3 km

Reversed Polarity

Reversed Polarity

Programmable Call Progress Tone

Programmable Call Progress Tone

FXO

FXO

Connector: RJ11

Connector: RJ11

Dial Mode: DTMF and Pulse

Dial Mode: DTMF and Pulse

Caller ID: FSK, DTMF

Caller ID: FSK, DTMF

Polarity Reversal

Polarity Reversal

Answer Delay

Answer Delay

Busy Tone Detection

Busy Tone Detection

No Current Detection

No Current Detection

Maintenance

Maintenance

SNMP v1/v2/v3

SNMP v1/v2/v3

Auto Provisioning

Auto Provisioning

Web Configuration

Web Configuration

Backup/Restore

Backup/Restore

Firmware Upgrade via Web

Firmware Upgrade via Web

CDR

CDR

IPOE

IPOE

Syslog(Emerg, alert, critical, error, warning, notice, info, debug)

Syslog(Emerg, alert, critical, error, warning, notice, info, debug)

Ping/Tracert Test/Network Capture

Ping/Tracert Test/Network Capture

NTP/Daylight Saving Time

NTP/Daylight Saving Time

lVR local Maintenance

lVR local Maintenance

Cloud-based Management

Cloud-based Management
