GWP Series 2G 3G LTE Gateway

GWP1600 series

Up to 5 plug-in GSM/3G/LTE gateway modules

Support from 4 to 20 channels

Specifications

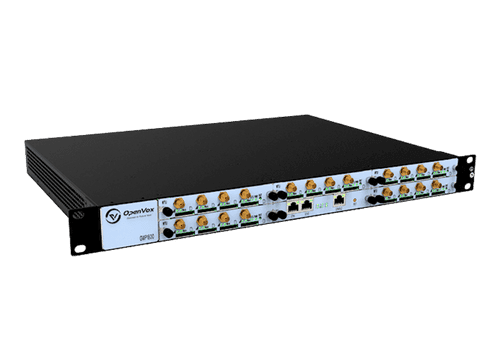

The VS-GWP1600 Wireless Gateway is a device that connects traditional mobile networks (2G, 3G, 4G) with internet-based phone systems (VoIP). This allows businesses to make and receive calls over the network while using mobile networks as a backup.


It comes in two models: VS-GWP1600 and VS-GWP2120. The VS-GWP1600 can hold up to 5 plug-in modules, supporting 4 to 20 SIM card connections at once. You can easily swap SIM cards and upgrade or replace parts without shutting down the system.


This gateway is easy to set up and expand, thanks to its user-friendly interface. You can add or remove modules as needed. It also supports high-quality voice calls and SMS, working with popular phone systems like Asterisk®, 3CX®, and FreeSWITCH®.


In short, the VS-GWP1600 helps businesses cut costs by connecting mobile and internet calls smoothly, while ensuring reliable and high-quality communication.

The VS-GWP1600 Wireless Gateway is a device that connects traditional mobile networks (2G, 3G, 4G) with internet-based phone systems (VoIP). This allows businesses to make and receive calls over the network while using mobile networks as a backup.


It comes in two models: VS-GWP1600 and VS-GWP2120. The VS-GWP1600 can hold up to 5 plug-in modules, supporting 4 to 20 SIM card connections at once. You can easily swap SIM cards and upgrade or replace parts without shutting down the system.


This gateway is easy to set up and expand, thanks to its user-friendly interface. You can add or remove modules as needed. It also supports high-quality voice calls and SMS, working with popular phone systems like Asterisk®, 3CX®, and FreeSWITCH®.


In short, the VS-GWP1600 helps businesses cut costs by connecting mobile and internet calls smoothly, while ensuring reliable and high-quality communication.

Technical Specifications:

Up to 20 GSM/3G/LTE Channels

Up to 20 GSM/3G/LTE Channels

1 SIM card per GSM/WCDMA/LTE channel

1 SIM card per GSM/WCDMA/LTE channel

2 10/100M LAN interfaces

2 10/100M LAN interfaces

Up to 20 Standard SMA-K interfaces

Up to 20 Standard SMA-K interfaces

Others

Storage temperature range: -20~70℃

Operation temperature range: 0~50℃

Operation humidity range: 10%~90% non-condensing

Software & Platform

Linux OS

Certification

CE

MIC temperature range: 0~50℃

Features

Simple and convenient configuration via Web GUI

Simple and convenient configuration via Web GUI

Support http / https / SSH

Support http / https / SSH

Basic security strategy(white/black list, security rules)

Basic security strategy(white/black list, security rules)

Optional GSM Voice Codec

Optional GSM Voice Codec

Codecs support: G.711A, G.711U, G.722, G.726, G.729A, GSM

Codecs support: G.711A, G.711U, G.722, G.726, G.729A, GSM

SIP(RFC3261) compliance

SIP(RFC3261) compliance

Support diverse SIP, IAX2 protocols

Support diverse SIP, IAX2 protocols

Multipe SIP/IAX2 Registratio models: None, server, client

Multipe SIP/IAX2 Registratio models: None, server, client

DTMF Signaling support: RFC2833, Inband, SIPINFO

DTMF Signaling support: RFC2833, Inband, SIPINFO

Real Open API Protocol(based on Asterisk)

Real Open API Protocol(based on Asterisk)

Support static IP and DHCP

Support static IP and DHCP

Call Duration Limit

Call Duration Limit

CLIR(Call Line Identification Restriction)

CLIR(Call Line Identification Restriction)

Call Waiting

Call Waiting

Call Forwarding (unconditional, no reply, busy, not reachable)

Call Forwarding (unconditional, no reply, busy, not reachable)

SMSC/SMS/USSD

SMSC/SMS/USSD

SMS bulk transceiver, SMS automatically resend, Sent to Email

SMS bulk transceiver, SMS automatically resend, Sent to Email

Support HTTP SMS interface

Support HTTP SMS interface

SMS Forwarding

SMS Forwarding

VPN clients:OpenVPN/PPTP VPN/L2TP VPN/N2N VPN (Not available for EAEU)

VPN clients:OpenVPN/PPTP VPN/L2TP VPN/N2N VPN (Not available for EAEU)

USSD transceiver

USSD transceiver

SMS remotely controlling gateway

SMS remotely controlling gateway

IMEI number automatically modify

IMEI number automatically modify

PIN identification

PIN identification

Mobile number portability (MNP)

Mobile number portability (MNP)

Flexible routing settings & unlimited routing rules

Flexible routing settings & unlimited routing rules

Support DISA

Support DISA

Extensible Automatic Callback and Speed Dial

Extensible Automatic Callback and Speed Dial

Customizable IVR

Customizable IVR

CDR(More than 200,000 Lines CDRs Storage Locally)

CDR(More than 200,000 Lines CDRs Storage Locally)

Support configuration files backup and upload

Support configuration files backup and upload

Support for custom scripts, dialplans

Support for custom scripts, dialplans

Least Cost Routing(LCR),according to Time, Port, Calling Number

Least Cost Routing(LCR),according to Time, Port, Calling Number

Independent System for Each Module

Independent System for Each Module

Affordable Price with Superior Performance

Affordable Price with Superior Performance

Hot-swap Design for both Sim cards and Modules

Hot-swap Design for both Sim cards and Modules

Compatible with sip server, such as: Asterisk, Elastix, 3CX, FreeSWITCH, etc

Compatible with sip server, such as: Asterisk, Elastix, 3CX, FreeSWITCH, etc

One Year Warranty

One Year Warranty
